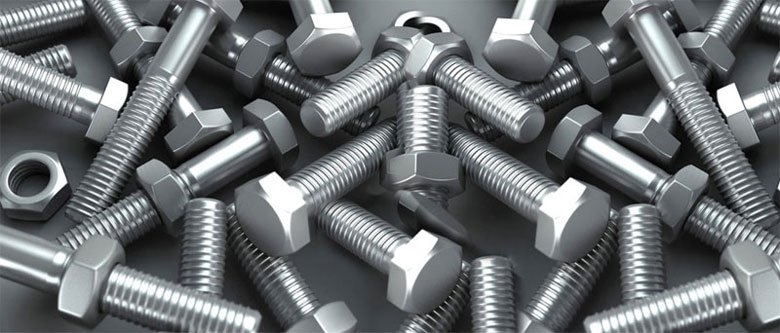

Alloy 200 is an excellent grade which is manufactured using high quality material and elements. These bolts are commonly used for high heat applications. Nickel 200 bolts are commonly used for aerospace applications, as the grade includes high amount of nickel content in it. Nickel 200 bolts are highly efficient and effective for hot and cold temperature applications.
Nickel 200 alloy is also known as UNS N02200. This grade provides excellent resistance from various chemical reactions. Nickel 200 provides excellent protection from caustic acids, chloride environment and sulfur attacks. These ASTM F2281 UNS N02200 Bolts also provides excellent protection from various corrosion, crevice corrosion and stress cracking. The grade provides excellent resistance from oxidizing agents and reduction.
The grade nickel 200 includes high amount of nickel which is approximately 99% of the overall share. Nickel is a very strong elements that provides excellent strength and ductility. The tensile strength of the grade is 67000 psi, i.e: 462 Mpa; whereas the yield strength of these bolts is 21500 psi, i.e: 148Mpa.
We at DC Engineering provide these bolts in various sizes, shoes and dimensions. These bolts are known for showing its stability and ductility even at high temperature. We provide these bolts at a very nominal prices.
We at DC Engineering manufacture these Nickel 200 bolts using high quality raw material and excellent technology. We do multiple testings on our products just to be sure about the quality and authenticity of the grade.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Standard |
DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 |
| Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration |
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
