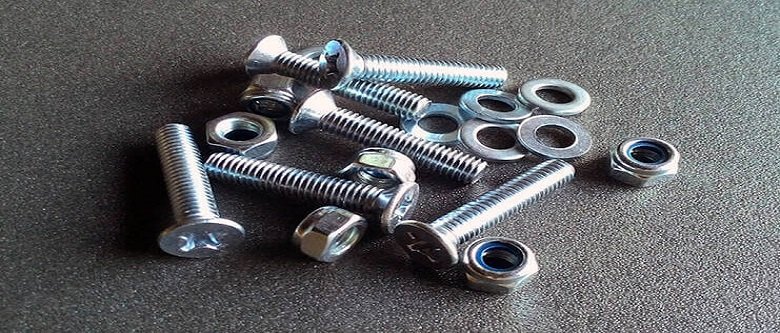

Monel k500 bolts are used in all types of industries. These bolts are used for a variety of purposes as they are very robust. Monel 500 provides excellent protection from various chemical reactions; these bolts are highly malleable and potent. The composition of Monel 500 includes high 27% copper and 63% nickel content. Monel 500 provides excellent resistance from corrosion, stress cracking, and oxidation. It also offers excellent protection from reduction, erosion, and rusting.
Monel k500 has 3-4 times higher mechanical and chemical reactions. The tensile strength of these bolts is high. The tensile strength of these bolts is 650°C. The Monel k500 is made of a mixture of austenitic and ferritic alloys. The power and flexibility is the most crucial feature of these bolts as these bolts tend to bend or break at high temperatures. It also has impressive mechanical strength at 300°C.
DC Engineering is the most famous manufacturer, supplier and exporter of Monel k500 bolts. These bolts are commonly made of high-quality raw materials and excellent types of machinery. We at DC Engineering make sure that every product is thoroughly tested and certified.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Standard |
DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 |
| Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration |
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel K500 | 2.4375 | N05500 | - | - | - | - | - |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.8 g/cm3 | 11350 °C (2460 °F) | Psi – 35,000 , MPa – 240 | Psi – 80,000 , MPa – 550 | 40 % |
