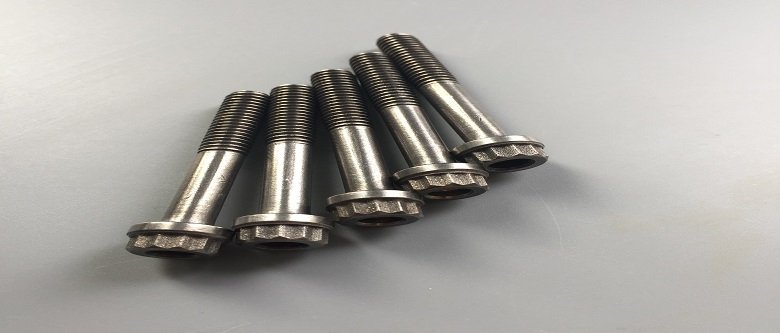

Inconel X-750 bolts are composed of an alloy with chromium, nickel, and iron as the primary elements. It also contains a little amount of copper and molybdenum in its chemical makeup. These fasteners are highly resistant to oxidation as well as corrosion-related corrosion pitting and cracking.
These Inconel X-750 Bolts may also be utilised in situations containing aqueous media such as chlorides or sulphides since they are resistant to these substances. These fasteners have excellent mechanical qualities as well. These fasteners can also tolerate high temperatures and perform admirably even at those temperatures, preventing oxidation.
We provide high-quality Inconel X-750 Bolts to our customers. When producing the fasteners, they take into account all of the industry norms and criteria. These fasteners also have the advantage of being easily formable.
These Inconel X-750 Counter Sunk Bolts are available in a variety of shapes and sizes, based on the user specifications and the application's needs and requirements. These fasteners are extensively utilised in a variety of applications because of their chemical composition, which provides excellent resistance in corrosive situations. These fasteners are also employed in a variety of sectors because of the additional features that they possess.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Standard |
DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 |
| Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration |
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
| STANDARD | UNS | WNR. |
| Inconel X-750 | N07750 | 2.4669 |
| Grade | C | Mn | Si | S | Cr | Fe | Ni |
| Inconel X-750 | 0.38 max | 1.00 max | 0.50 max | 0.01 max | 14.0 - 17.0 | 5.0 - 9.0 | 70.0 min |
| Ultimate Tensile Strength | .2% Yield Strength | Elongation % |
| 1250 MPa, 181000 psi | 850 MPa, 123000 psi | 30 |
