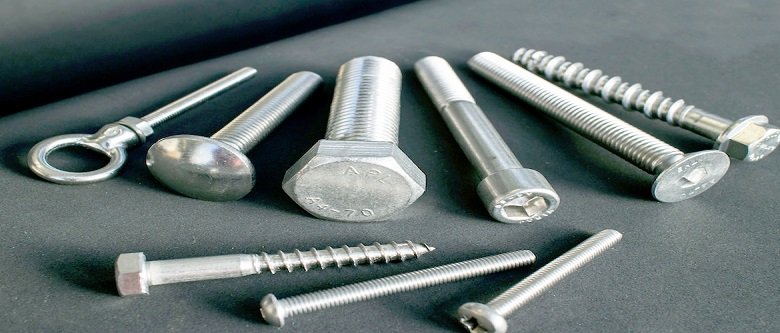

DC engineering is the most famous manufacturer, supplier, and stockist of Inconel 600 bolts. These bolts are highly efficient and effective for high heat temperatures. These bolts are available in various specifications, sizes, and shapes. Inconel 600 bolts are commonly applicable in industries where cryogenic temperature frequently rises above 2000°C. We at DC Engineering manufacture these bolts using high-quality materials and machinery.
Inconel 600 Bolts are highly malleable and durable grades. These grades are commonly known for their strength and robustness.
Inconel 600 is made from chromium, nickel, and iron. This nickel-chromium-iron grade is enriched with excellent properties and characteristics. Inconel 600 provides excellent resistance from all types of corrosion, crevice corrosion, and stress cracking. These Inconel 600 bolts provide excellent resistance from all kinds of chemical reactions. Inconel 600 bolts can commonly take all types of heat and cold treatments. It can also resist all kinds of chemical reactions.
Inconel 600 bolts are commonly used for permanently joining two or more objects together.
The chemical composition of these bolts includes vital elements and alloys. These bolts are designed for application in cryogenic and elevated temperatures. The grade has the capacity of bearing high heat and cold temperatures. It also showcases excellent performance at extremely high heat. Inconel 600 bolts provide high resistance from oxidation at 2200°F.
Inconel 600 usually is heat-treated at the temperature of 1532°C-1899°C. Inconel usually gets complicated with the help of cold working. These bolts are commonly used in various companies for joining two or more parts together. Inconel 600 bolts are also known as a non-magnetic super alloy enriched with high strength, flexibility and malleability.
DC Engineering makes sure all these bolts are made of high-quality material. These bolts are highly stable and thoroughly tested. We also provide these bolts at a very economical price.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Standard |
DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 |
| Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration |
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
