Inconel 625 and grade 601 have similar properties. Inconel 625 grade is made of high-quality material and is used for multiple purposes. Inconel 625 has excellent features and properties. This 625 grade is highly stable and malleable. It provides excellent stability and strength in hot as well as cold weather. It also offers excellent resistance from oxidation, reduction, and other chemical procedures.
UNS N06625 ASTM F468 Bolts has high chromium content. The high chromium content provides excellent welding and forming properties to the grade. Inconel 601 has excellent forming and working capacity.

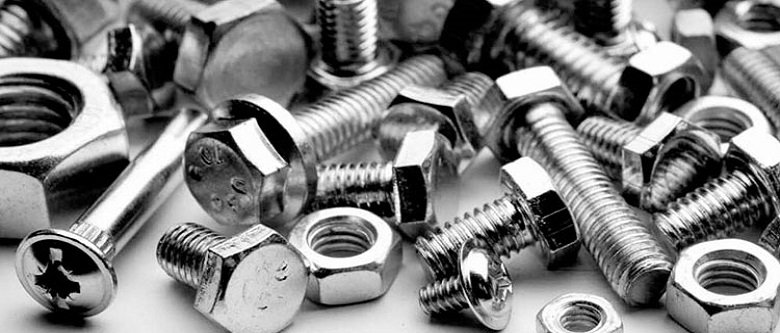

Inconel 625 bolts are made for high temperatures. These bolts are commonly used for joining two or more objects together. These bolts are highly efficient for cold workings as well. These bolts have excellent resistance and other properties. Inconel 625 bolts are capable of bearing heat upto 2200°F. These bolts are exceedingly malleable and durable.
Inconel 625 Screw provide extreme flexibility and strength. Strength is the main key characteristic of this product.
Alloy 625 bolts are highly weldable, and it also has bizarre properties. These bolts are commonly applicable in industries where constant heat and electricity attacks the grade. These bolts are highly used in aerospace, Pulp and paper manufacturing, petrochemical, pharmaceutical, etc.
Alloy 625 Nuts support pitting, annealing and welding. Inconel 625 bolts can be forged at the temperature range of 1200°C. The grade does not provide impressive flexibility at the temperature range of 646°C-847°C.
The tensile and yield strength of these bolts is also very high. The minimum tensile strength of these bolts is 624 mpa (90.5 ksi), whereas the yield strength of these bolts is 214 Mpa (31 ksi).
DC Engineering is the most trusted manufacturer and supplier of these Inconel grades. We provide these grades at a very affordable price. We thoroughly test and certify every product that is being manufactured in our industry.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Standard |
DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 |
| Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration |
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
