These Incoloy 800HT Bolts Elbows are made from high-quality raw materials, which results in high-quality Incoloy 800HT Bolts Elbows. They also have built-in compliance with applicable standards and laws. Furthermore, when manufacturing these Incoloy 800HT Bolts Elbows, the necessary standards, regulations, and guidelines are followed, resulting in high-quality products. These Incoloy 800HT Bolts Elbows are also well-finished.

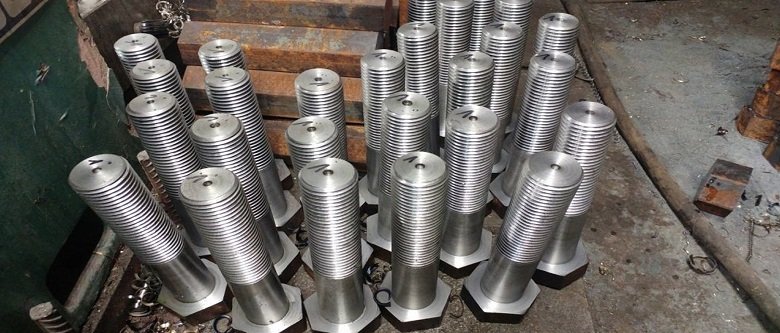

These Incoloy 800HT Bolts have great characteristic of tensile strength. They are also very tough. Because of these properties these Incoloy 800HT Bolts can perform very well at elevated temperatures. These Incoloy 800HT Bolts also have a long life. These Incoloy 800HT Bolts have great dimensional accuracy. They also have the required properties related to resistance. These Incoloy 800HT Bolts are manufactured by both cold and hot working techniques. When resistance towards chloride stress corrosion cracking and pitting is required the nickel content present in their chemical composition proves very useful.
The Incoloy 800HT Fasteners are available in different shapes, sizes, as well as dimensions, depending upon the needs as well as requirements of the applications or the specifications provided by the client. These also have to undergo different destructive and non-destructive quality checking so that great quality products are produced. Because of all of the properties and characteristics that they have they are used in a wide range of industrial applications.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Standard |
DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 |
| Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration |
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | EN | OR |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | X8NiCrAlTi32-21 | XH32T |
| Grade | C | Mn | Si | S | Cr | Fe | Ni |
| Incoloy 800HT | 0.06 - 0.1 | 1.5 max | 1.0 max | 0.015 max | 19.0 - 23.0 | 39.5 min | 30.0 - 35.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
