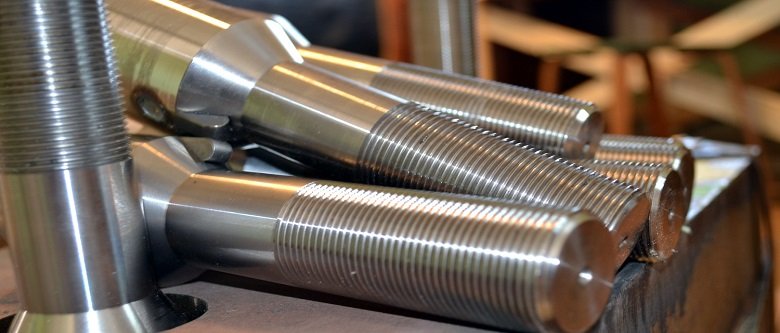

The chemical composition of these Incoloy 925 Bolts consists of molybdenum, and copper along with titanium. These Fasteners also provide resistance towards corrosion in unfavorable environments. These Incoloy 925 Bolts are also resistant towards those unfavourable mediums which might be subjected to various acids such as phosphoric acids, and nitric acids, acetic acids, and so on.
These Incoloy 925 Bolts are manufactured with high-quality raw materials, resulting in high-quality Incoloy 925 Bolts. They are also developed to comply with applicable norms and regulations. Furthermore, the essential rules, regulations, and guidelines are followed when producing these Incoloy 925 Bolts, resulting in high-quality items. These Incoloy 925 Bolts have a nice polish as well. These Incoloy 925 Bolts also provide resistance towards chloride stress corrosion cracking.
Because of the chemical composition that these alloys have, they have a lot of properties as well as characteristics which makes them applicable for many applications. To assure their quality, these Incoloy 925 Bolts must undergo a number of tests. These tests include radiography, positive material identifications, micro/ macro tests, and so on. As a consequence, the Incoloy 925 Bolts performs admirably. These Incoloy 925 Bolts are used in a variety of industrial applications due to its numerous qualities and characteristics.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Standard |
DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 |
| Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration |
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
| STANDARD | UNS | WNR. |
| Alloy 925 | N09925 | - |
| Grade | C | Mn | Si | S | Cr | Fe | Ni |
| Incoloy 925 | 0.30 max | 1.0 max | 0.5 max | 0.03 max | 19.5 - 22.5 | 22 min | 42.0 - 46.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.08 g/cm3 | 1311°C-1366 °C | 685 MPa | 271 MPa | 56% |
