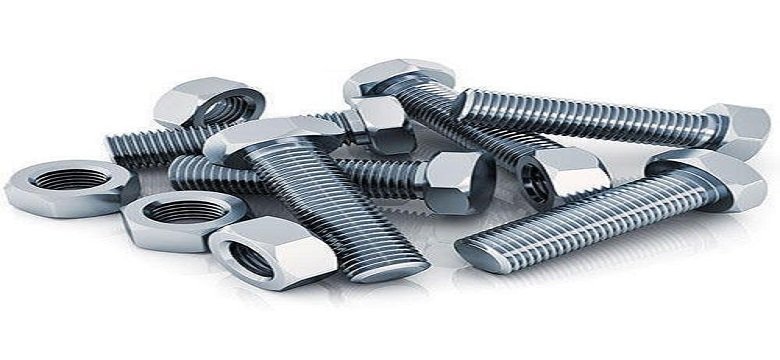

Inconel 625 Fasteners


INCONEL 625 BOLT

How It Work?

Laboratory Tested
Quality Assurance
On Time Delivery
Shipping Globally
Best Services

Specification :-

Specifications DIN, ISO ,JIS ,GB, IS, BS, ASTM
Standard ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472
Size M0.2 to M33 | 3/6" to 2" | Custom Sizes
Length 3 mm to 200 mm | Custom Sizes
Dimensions DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Form Hex, Threading, Square, Round as per Gauge Etc.
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically
Threads available UNF, BSW, BSF, METRIC, UNC, or as required
Threads Configuration ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Test Certificate As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Raw materials Source JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc.
Packing IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Surface Coating Cadmium Coating
Hot Dipped Galvanizing Coating
Ptfe Coated
Phosphate Coating
Teflon Coating
Xylon Coating
Zinc Coating

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 625 2.4856 N06625 NCF 625 NA 21 ХН75МБТЮ NC22DNB4M NiCr22Mo9Nb

Chemical Composition

Grade C Mn Si S Cu Fe Ni
Inconel 625 0.10 max 0.50 max 0.50 max 0.015 max - 5.0 max 58.0 min

Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 625 8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %

Applications and Uses

  • Chemical Industries
  • Oil & Gas Industrires
  • Power Plant Industries
  • Shipbuilding Industries
  • Fertilizer Industrires
  • Petrochemical Industrires
  • Sugar Industrires
  • Cement Industrires
